Structural Design

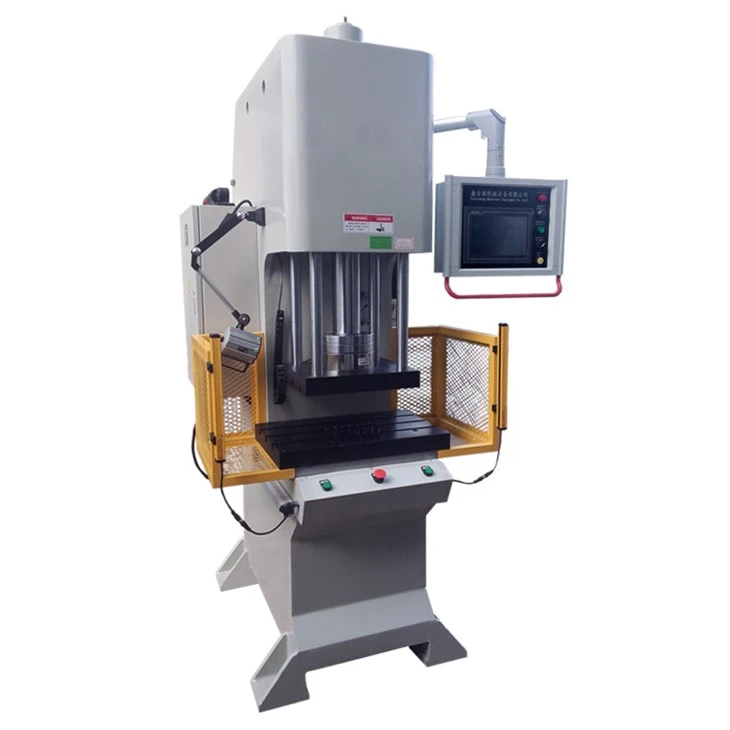

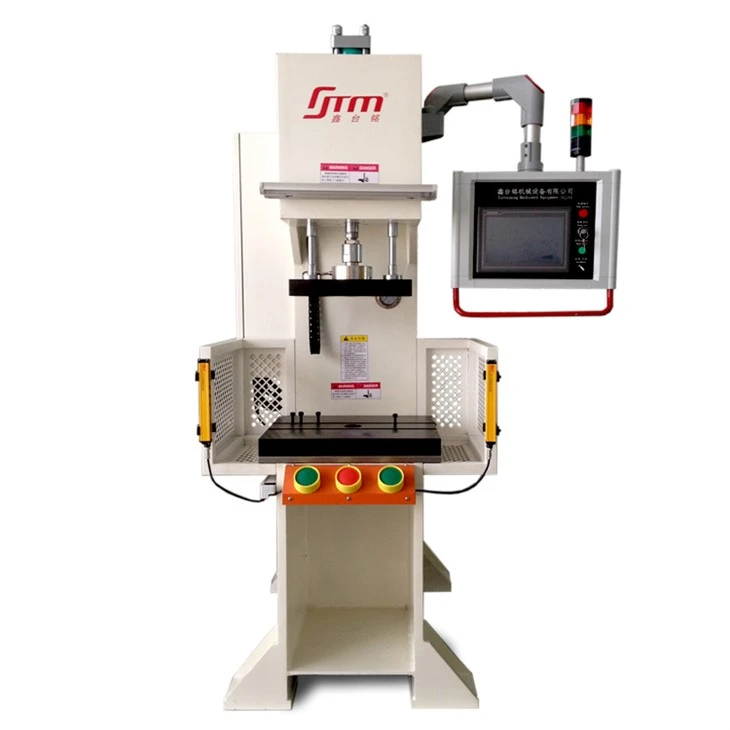

The main feature of C-Frame Press is its C-shaped body structure, which is similar to a capital English letter "C". The top and bottom are two parallel crossbeams connected by two columns on both sides, forming a closed frame. This structure not only provides strong support, but also reduces vibration and displacement generated during the stamping process, ensuring machining accuracy and stability.
Working Principle
The working principle of C-Frame Press is based on stamping technology. During operation, the electric motor drives the slider (also known as the punch) through a transmission mechanism to perform reciprocating motion in the vertical direction. The upper part of the mold is installed on the slider, while the lower part is fixed on the workbench. When the slider moves downwards, the upper and lower molds close and apply pressure to the metal sheet placed between them, causing it to undergo plastic deformation, thereby achieving the goals of stamping, forming, shearing or bending. After the stamping is completed, the slider rises, separates the upper and lower molds, takes out the processed workpiece, and prepares for the next stamping.
Technical Parameter
The technical parameters of C-Frame Press vary depending on the model and purpose, but usually include the following aspects:
Nominal pressure: represents the maximum pressure that a machine can produce, usually measured in tons (T).
Slide stroke: The maximum vertical movement distance of the slide, usually measured in millimeters (mm).
Workbench size: The size of the workbench determines the size range of workpieces that can be machined.
Mold installation height: The height at which the mold is installed on the workbench affects the replacement and adjustment of the mold.
Motor power: The power of the electric motor that drives the operation of the machine, usually measured in kilowatts (kW)
Application Area
C-Frame Press is widely used in multiple industries such as automobiles, home appliances, construction, and transportation. In the automotive manufacturing industry, it is often used to produce body parts, chassis parts, etc; In the home appliance manufacturing industry, it is used to manufacture the outer shell and internal parts of household appliances such as refrigerators and washing machines. In addition, it is widely used in fields such as metal processing, hardware products, and electronic components.
